Implements a connection to a SignalR hub. More...

#include <HubConnection.h>

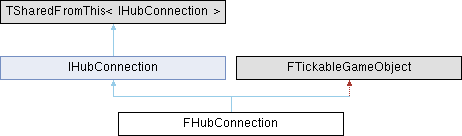

Inheritance diagram for FHubConnection:

Public Member Functions
	FHubConnection (const FString &InUrl, const TMap< FString, FString > &InHeaders)
	Creates a new connection to a SignalR hub.

virtual	~FHubConnection ()
	Destructor for the hub connection.

virtual void	Start () override
	Starts the hub connection.

virtual void	Stop () override
	Stops the hub connection.

virtual FORCEINLINE FOnHubConnectedEvent &	OnConnected () override
	Gets the event that is triggered when the hub connection is established.

virtual FORCEINLINE FOnHubConnectionErrorEvent &	OnConnectionError () override
	Gets the event that is triggered when a hub connection error occurs.

virtual FORCEINLINE FHubConnectionClosedEvent &	OnClosed () override
	Gets the event that is triggered when the hub connection is closed.

virtual FOnMethodInvocation &	On (const FString &EventName) override
	Registers a handler for a hub method invocation.

virtual FOnMethodCompletion &	Invoke (const FString &EventName, const TArray< FSignalRValue > &InArguments=TArray< FSignalRValue >()) override
	Invokes a hub method with the specified arguments and waits for the result.

virtual void	Send (const FString &InEventName, const TArray< FSignalRValue > &InArguments=TArray< FSignalRValue >()) override
	Sends a hub method invocation with the specified arguments without waiting for a result.

virtual void	Tick (float DeltaTime) override
	Ticks the hub connection, used for periodic tasks such as sending pings.

TStatId	GetStatId () const override
	Gets the stat ID for this tickable object.

virtual ETickableTickType	GetTickableTickType () const override
	Gets the tickable tick type for this object.

virtual bool	IsTickable () const override
	Determines if this object is tickable.

virtual bool	IsTickableInEditor () const override
	Determines if this object is tickable in the editor.

virtual bool	IsTickableWhenPaused () const override
	Determines if this object is tickable when the game is paused.

Public Member Functions inherited from IHubConnection
	DECLARE_EVENT (IHubConnection, FOnHubConnectedEvent)
	Delegate called when a connection has been established successfully.

	DECLARE_EVENT_OneParam (IHubConnection, FOnHubConnectionErrorEvent, const FString &)
	Delegate called when a connection could not be established.

	DECLARE_EVENT (IHubConnection, FHubConnectionClosedEvent)
	Delegate called when a web socket connection has been closed.

	DECLARE_DELEGATE_OneParam (FOnMethodInvocation, const TArray< FSignalRValue > &)

	DECLARE_DELEGATE_OneParam (FOnMethodCompletion, const FSignalRInvokeResult &)

template<typename... ArgTypes>
FORCEINLINE FOnMethodCompletion &	Invoke (const FString &EventName, ArgTypes... Arguments)
	Templated version of Invoke that converts arguments to FSignalRValue automatically.

template<typename... ArgTypes>
FORCEINLINE void	Send (const FString &EventName, ArgTypes... Arguments)
	Templated version of Send that converts arguments to FSignalRValue automatically.

Static Public Attributes
static constexpr float	PingTimer = 10.0f

Protected Member Functions
void	ProcessMessage (const FString &InMessageStr)

Protected Member Functions inherited from IHubConnection
virtual	~IHubConnection ()

Detailed Description

Implements a connection to a SignalR hub.

Provides methods to start and stop the connection, invoke hub methods, and register handlers for hub method invocations.

Constructor & Destructor Documentation

◆ FHubConnection()

FHubConnection::FHubConnection	(	const FString &	InUrl,
		const TMap< FString, FString > &	InHeaders )

Creates a new connection to a SignalR hub.

Parameters

InUrl	The URL of the SignalR hub.
InHeaders	HTTP headers to include in requests to the server.

◆ ~FHubConnection()

FHubConnection::~FHubConnection ( )

virtual

Destructor for the hub connection.

Cleans up resources and closes the connection if necessary.

Member Function Documentation

◆ GetStatId()

TStatId FHubConnection::GetStatId ( ) const

override

Gets the stat ID for this tickable object.

Returns: The stat ID.

◆ GetTickableTickType()

virtual ETickableTickType FHubConnection::GetTickableTickType ( ) const

inlineoverridevirtual

Gets the tickable tick type for this object.

Returns: The tickable tick type.

◆ Invoke()

IHubConnection::FOnMethodCompletion & FHubConnection::Invoke	(	const FString &	EventName,
		const TArray< FSignalRValue > &	InArguments = TArray<FSignalRValue>() )

overridevirtual

Invokes a hub method with the specified arguments and waits for the result.

Parameters

EventName	The name of the hub method to invoke.
InArguments	The arguments to pass to the hub method.

Returns: Reference to the method completion delegate that will be called when the method completes.

Implements IHubConnection.

◆ IsTickable()

virtual bool FHubConnection::IsTickable ( ) const

inlineoverridevirtual

Determines if this object is tickable.

Returns: True if tickable, false otherwise.

◆ IsTickableInEditor()

virtual bool FHubConnection::IsTickableInEditor ( ) const

inlineoverridevirtual

Determines if this object is tickable in the editor.

Returns: True if tickable in editor, false otherwise.

◆ IsTickableWhenPaused()

virtual bool FHubConnection::IsTickableWhenPaused ( ) const

inlineoverridevirtual

Determines if this object is tickable when the game is paused.

Returns: True if tickable when paused, false otherwise.

◆ On()

IHubConnection::FOnMethodInvocation & FHubConnection::On ( const FString & EventName )

overridevirtual

Registers a handler for a hub method invocation.

Parameters

EventName The name of the hub method.

Returns: Reference to the method invocation delegate.

Implements IHubConnection.

◆ OnClosed()

virtual FORCEINLINE FHubConnectionClosedEvent & FHubConnection::OnClosed ( )

inlineoverridevirtual

Gets the event that is triggered when the hub connection is closed.

Returns: Reference to the hub connection closed event.

Implements IHubConnection.

◆ OnConnected()

virtual FORCEINLINE FOnHubConnectedEvent & FHubConnection::OnConnected ( )

inlineoverridevirtual

Gets the event that is triggered when the hub connection is established.

Returns: Reference to the hub connected event.

Implements IHubConnection.

◆ OnConnectionError()

virtual FORCEINLINE FOnHubConnectionErrorEvent & FHubConnection::OnConnectionError ( )

inlineoverridevirtual

Gets the event that is triggered when a hub connection error occurs.

Returns: Reference to the hub connection error event.

Implements IHubConnection.

◆ ProcessMessage()

void FHubConnection::ProcessMessage ( const FString & InMessageStr )

protected

◆ Send()

void FHubConnection::Send	(	const FString &	InEventName,
		const TArray< FSignalRValue > &	InArguments = TArray<FSignalRValue>() )

overridevirtual

Sends a hub method invocation with the specified arguments without waiting for a result.

Parameters

InEventName	The name of the hub method to invoke.
InArguments	The arguments to pass to the hub method.

Implements IHubConnection.

◆ Start()

void FHubConnection::Start ( )

overridevirtual

Starts the hub connection.

Initiates the connection process to the SignalR hub.

Implements IHubConnection.

◆ Stop()

void FHubConnection::Stop ( )

overridevirtual

Stops the hub connection.

Closes the connection to the SignalR hub and cleans up resources.

Implements IHubConnection.

◆ Tick()

void FHubConnection::Tick ( float DeltaTime )

overridevirtual

Ticks the hub connection, used for periodic tasks such as sending pings.

Parameters

DeltaTime The time elapsed since the last tick.

Member Data Documentation

◆ PingTimer

float FHubConnection::PingTimer = 10.0f

staticconstexpr
